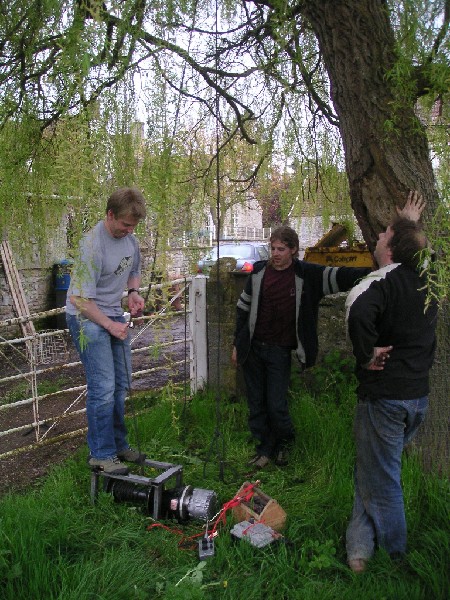

  winch_230406_2.jpg - Test rope attached and view of the control box. We measured the current that the motor draws when lifing one person it is about 10A at 24V, which equates to 240W of power consumption. The speed is 1m per 6 secs, which is not too bad considering that it is only battery powered.
winch_230406_4





Test rope attached and view of the control box. We measured the current that the motor draws when lifing one person it is about 10A at 24V, which equates to 240W of power consumption. The speed is 1m per 6 secs, which is not too bad considering that it is only battery powered.
